Introduksjon: This unit machine is special design for packaging pellets tea into small pillow bag with tiny weight .With function of tea pellets feeding,weighing, Automatic bag forming sealing and output .The main machine has function of bag counting and date coding .

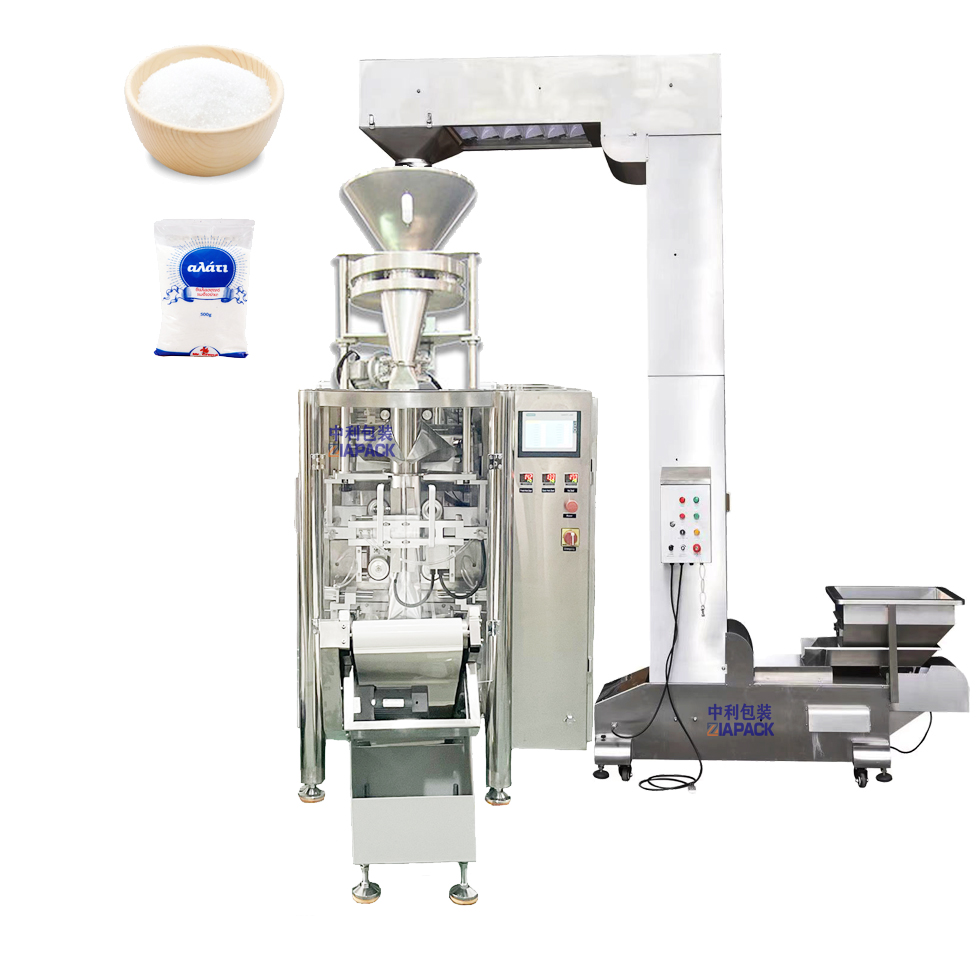

ZL320 Vertical bag forming filling sealing packaging machine
The whole machine frame made by Stainless Steel 304, All Material contact part made by SUS304 .This machine equipped with bag-making, cutting, code printing , bag counting ,bag sealing and bag dropping .According client requirement can add bag pressing ,make gusseted bag ,making flat bottom bag etc.Adopt SIEMENS PLC and Touch Screen，Panasonic servo motor, Japanese Photo Sensor , SMC electromagnetic valve . The machine performance is stable .It is a best choice for improve the automation of modern factory .
Tekniske parametere:
Weighing Range:10-500gram
Packaging Speed:30-60bags/min
Bag size: (80-220)*(60-150)mm(L*W)
Film roller width :320mm
air requirement: 0.6Mpa 0.65m³/min
outer diameter: 300mm
inner diameter: 75mm
inner weight: 300kg
Power source: 3.5kW 380V±10% 50Hz
Main Features and Characteristics

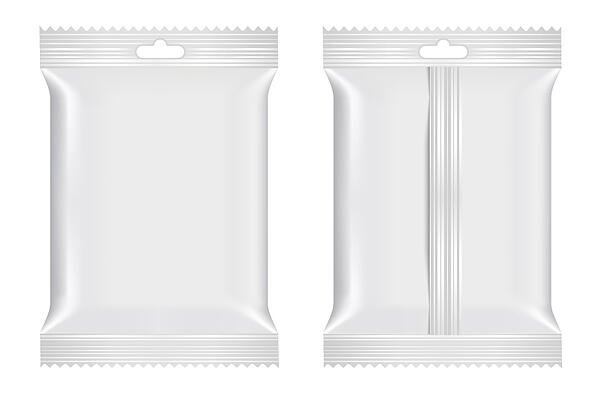

A wide range of pouches: pillow bag,Can make gusseted bag,flat bottom bag by change device
High speed: More than 20-60 bags/min
Enkel å betjene: PLS-kontroller og fargeberøringsskjerm, feilindikasjon på berøringsskjermen.
Lett å justere: bare ca. 10 minutter for å bytte forskjellige poser.
Frekvenskontroll: Hastigheten kan justeres ved frekvensomregning innenfor rekkevidde.
Høy automatisering: ubemannet i veie- og pakkeprosess, maskinalarm automatisk når feil.
Safety and Hygiene
Ingen film, maskinen larmer.
Maskinalarm og stopp når det utilstrekkelige lufttrykket.
Sikkerhetsvakter med sikkerhetsbrytere, maskinalarm og stopp når sikkerhetsvakterne åpnes.
Hygienic construction, the product contact parts are adopted sus304 stainless steel
