Introduksjon av løsningen:

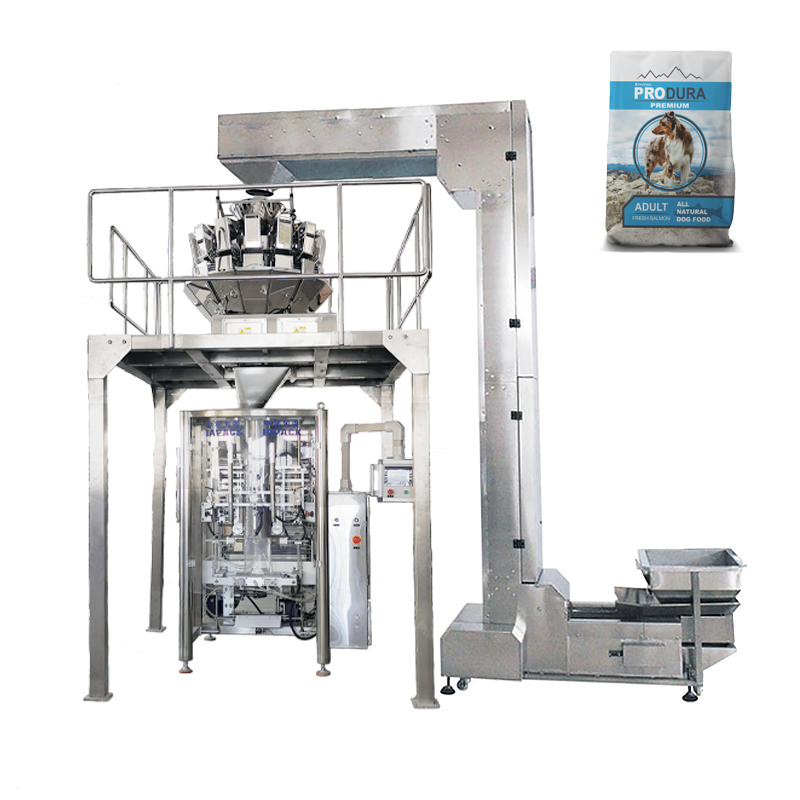

This production line including One set ZL14-1.6L multi head weighing machine .One set ZL520 Vertical bag forming filling sealing ,one set Z type bucket elevator and one set platform and ladder . The whole machine can automatic measuring small granule product and packing into roll film bag .Widely use for packaging rice bean sugar chips and so on.The whole machine made by Stainless Steel 304, This machine equipped with bag-making, cutting, code printing , etc. Siemens PLC and Touch Screen，Panasonic servo motor, Japanese Photo Sensor , Korean Air valve, etc..
Filmtrekksystemet tok i bruk servomotorkjøring, noe som gjorde hastigheten raskere.
Tekniske parametere:
Weighing Range:100-3000g
Packaging Speed:10-60 bags/min
Posestørrelse: (80-360)*(100-260)mm(L*B)
Trykkluftbehov: 0,6Mpa 0,65m³/min
Spolens ytre diameter: 400 mm

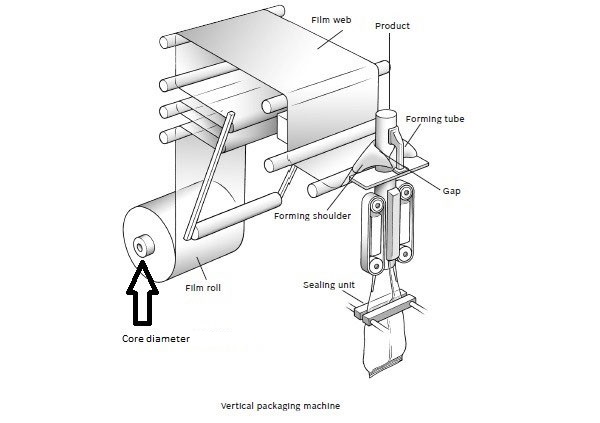

Kjerne indre diameter: 75mm
Maskinvekt: 600 kg
Strømkilde: 4,5kW 380V±10% 50Hz
