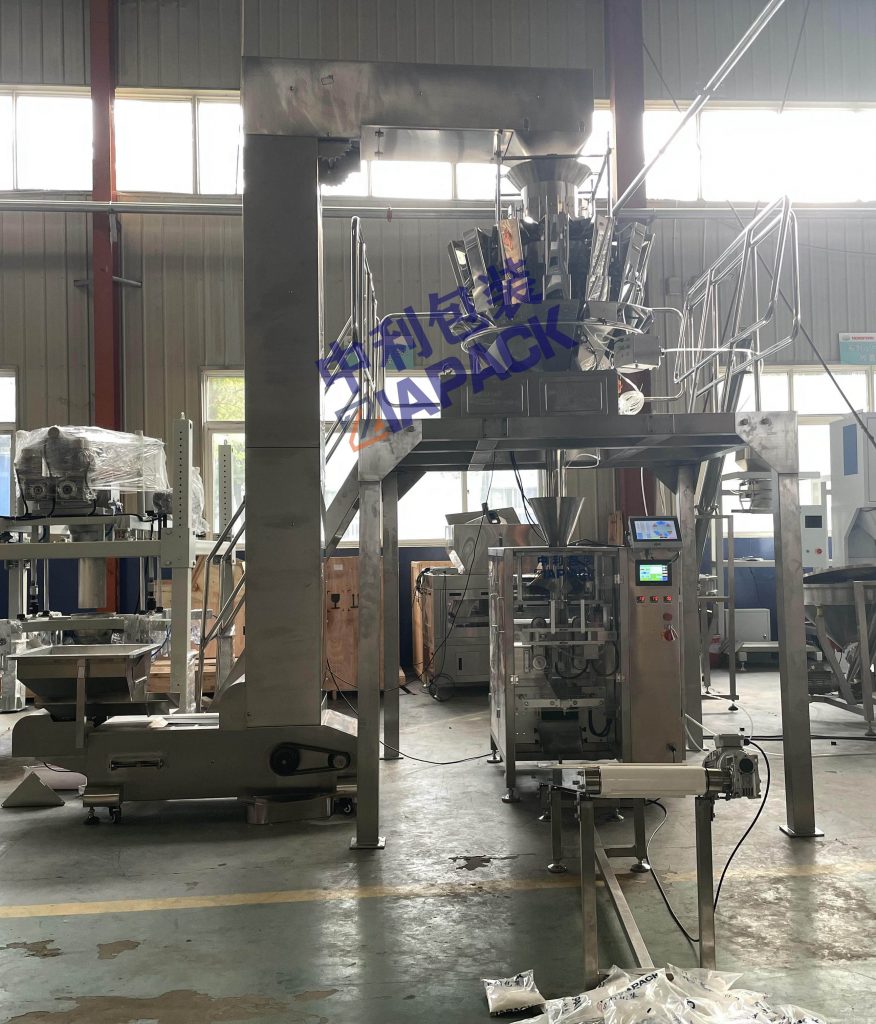

ZL520 vertical bag forming filling sealing Packaging machine
Hele maskinen laget av Stainless Steel 304, Denne maskinen er utstyrt med poseproduksjon, skjæring, kodeutskrift osv. Siemens PLC og berøringsskjerm，Panasonic servomotor, japansk fotosensor, koreansk luftventil, etc..
Filmtrekksystemet tok i bruk servomotorkjøring, noe som gjorde hastigheten raskere.
Tekniske parametere:
Veieområde: 30-500g
Pakkehastighet: 20-40 poser/min
Posestørrelse: (80-360)*(100-260)mm(L*B)
Trykkluftbehov: 0,6Mpa 0,65m³/min
Spolens ytre diameter: 400 mm
Kjerne indre diameter: 75mm
Maskinvekt: 600 kg
Strømkilde: 4,5kW 380V±10% 50Hz

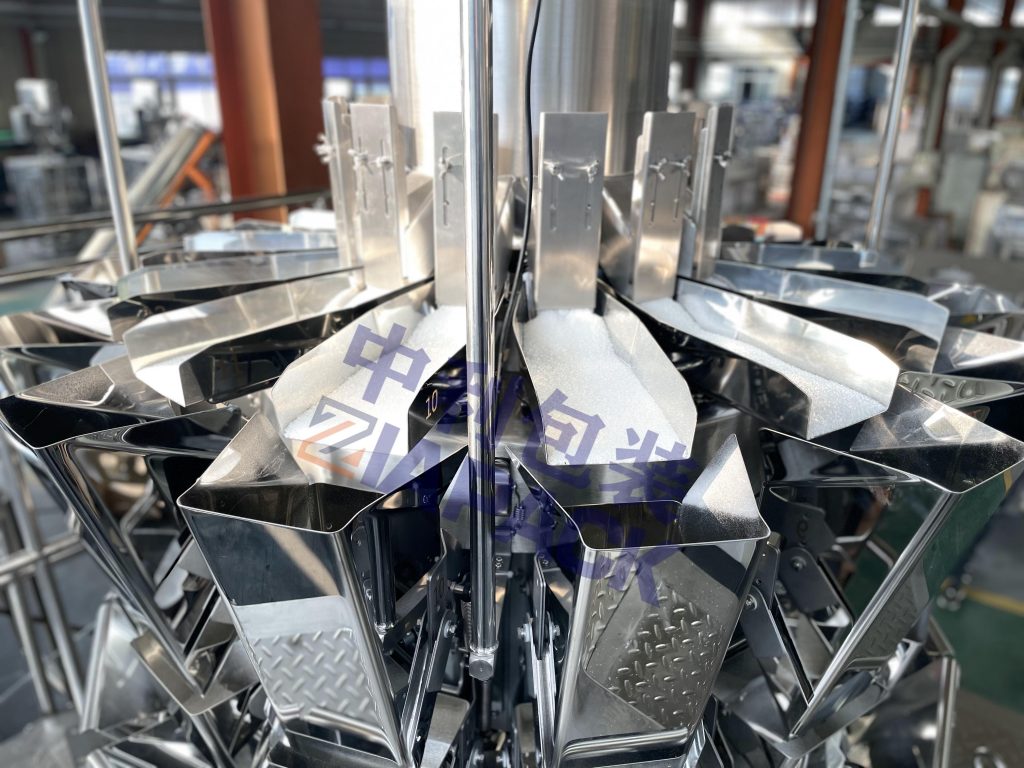

ZL14-2.5L Leak-proof multi-head weighing machine for sugar
applikasjon
leak proof Multihead Weigher Machine is suitable for weighing small granules such as rice, sugar, fine tea, detergent powder, etc.
Egenskaper
1.Special load cell with high precision and high standard.
2.Program recovery function can reduce operation failures and support multi-segment weight calibration.
3.No products auto pause function can improve weighing stability.
4.Linear amplitude can be adjusted independently.
5.Many languages available for global markets.
6.100 programs capacity can meet various weighing requirements and user-friendly help menu contributes to easy operation.
Mechanical character
1.Multi-mouth feeder can dispense products into each linear feeder pan effectively.
2.Specially designed U-shaped linear feeder pans can avoid leaking problem.
3.Mold making process and uniform design standards contribute to better interchangeability for spare parts.
4.Aluminum thickened middle standing enhances the strength of the machine, making the time for stabilizing hoppers much shorter.
5.Weighing type for material detection is available, which can make accurate control of feeding time & material thickness and ensure weighing accuracy.
