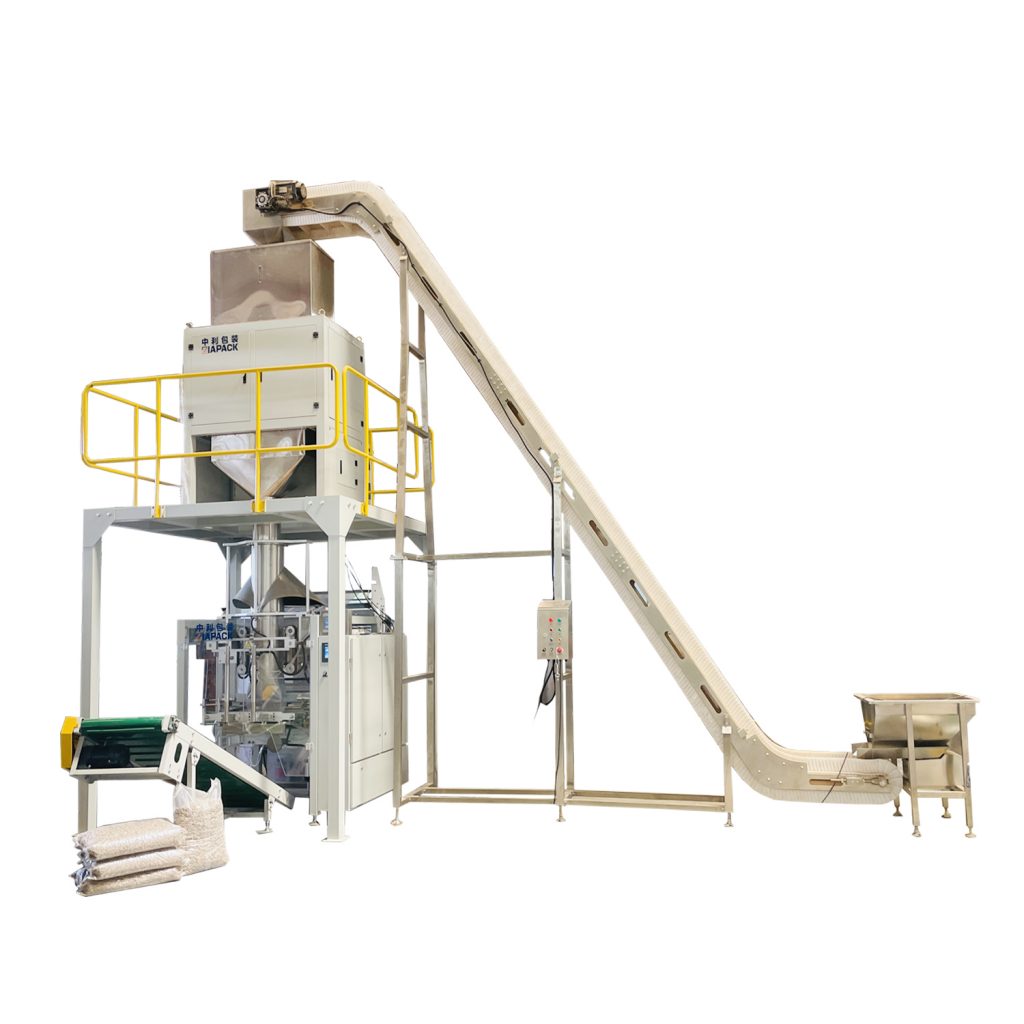

15kg wooden pellets vffs bag forming filling sealing bagging machine

Automatic15-20 kg wooden pellets bag forming filling packaging machine

Introduksjon:

This unit machine is special design for packaging small piece products like nuts dates,chips, wooden pellets fertilizer and so on .The whole machine body made by SUS304 .Including product weighing filling machine ,VFFS bag forming sealing packaging machine ,one set platform for weighing machine and output conveyor for transfer the finished bag.According client requirement we can add handle hole punching device .

Tekniske parametere:

Weighing Range: 1kg-5kg

Packaging Speed:12-30 bags/min

Bag size: (150-420)*(120-350)mm(L*W)

Max film width:720mm

Trykkluftbehov: 0,6Mpa 0,65m³/min

Reel outer diameter: 450mm

Kjerne indre diameter: 75mm

Machine weight: 950kg

Power source: 6.5kW 380V±10% 50Hz

Hovedfunksjoner og egenskaper:

• A wide range of pouches:  Pillow and Gusset pouches.
• Høy hastighet: 20-50 poser/min
• Enkel å betjene: PLS-kontroller og fargeberøringsskjerm, feilindikasjon på berøringsskjermen.
• Lett å justere: bare ca. 10 minutter for å bytte forskjellige poser.
• Frekvenskontroll: Hastigheten kan justeres ved frekvensomregning innenfor rekkevidde.
• Høy automatisering: ubemannet i veie- og pakkeprosess, maskinalarm automatisk når feil.
• Sikkerhet og hygiene:
• Ingen film, maskinen larmer.
• Maskinalarm og stopp når det utilstrekkelige lufttrykket.
• Sikkerhetsvakter med sikkerhetsbrytere, maskinalarm og stopp når sikkerhetsvakterne åpnes.
• Hygienic construction, the product contact parts are adopted sus316stainless steel.

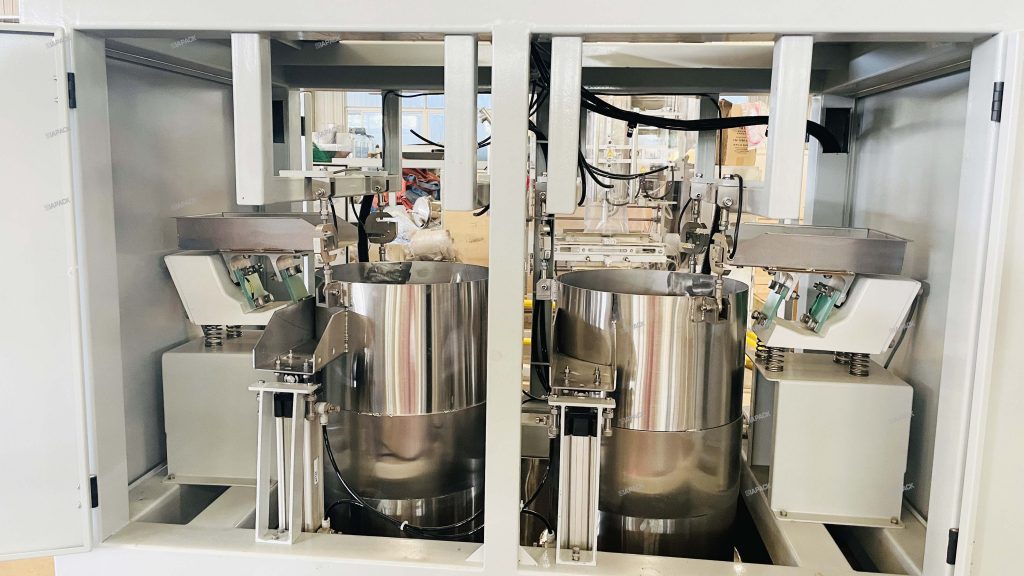

• ZLC2-15k double bucket weighing machine

  Introduksjon:

  This linear weight is dosing system for Free Flow Powders .Such as Detergent, Sugar, Salt, Spices, Milk powder various sorts of powders, etc. Also it is suitable for dosing granule products such as Coffee beans, Rice, Sesame Seeds, and Small Granules etc. Dry & Processed Foods: Snack foods, Cereal & Health Foods,Biscuits & Bakery, pasta, Grated Cheese, Nuts, Dried fruits, Pet Food

  Egenskaper:

  1. 7” color touch screen with multi-language operating system. Software can be upgraded through USB.
  2. SUS304 material contact part ,Machine frame made by painted steel.High performance ondust and water proof design.
  3. Restoration function of factory parameter. 99 product parameters can be preset to meet different parameter program requirements.
  4. Amplitude can be automatically adjusted for easy operation.
  5. Each hopper can be used as single weigher.
  6. 6. With cylinder controlfor door open-close control , which is faster and more stable.
  7. 7. Modular control system for easy maintenance and cost-saving.

  Parameter:

  Weighing range :10-15kg

  Accuracy :±0.5-0.8%

  Min scale :0.1gram

  Max speed :20-40bag/min

  HIM:7” touch screen

  Power supply :AC220±10% 50HZ /60HZ 1KW
