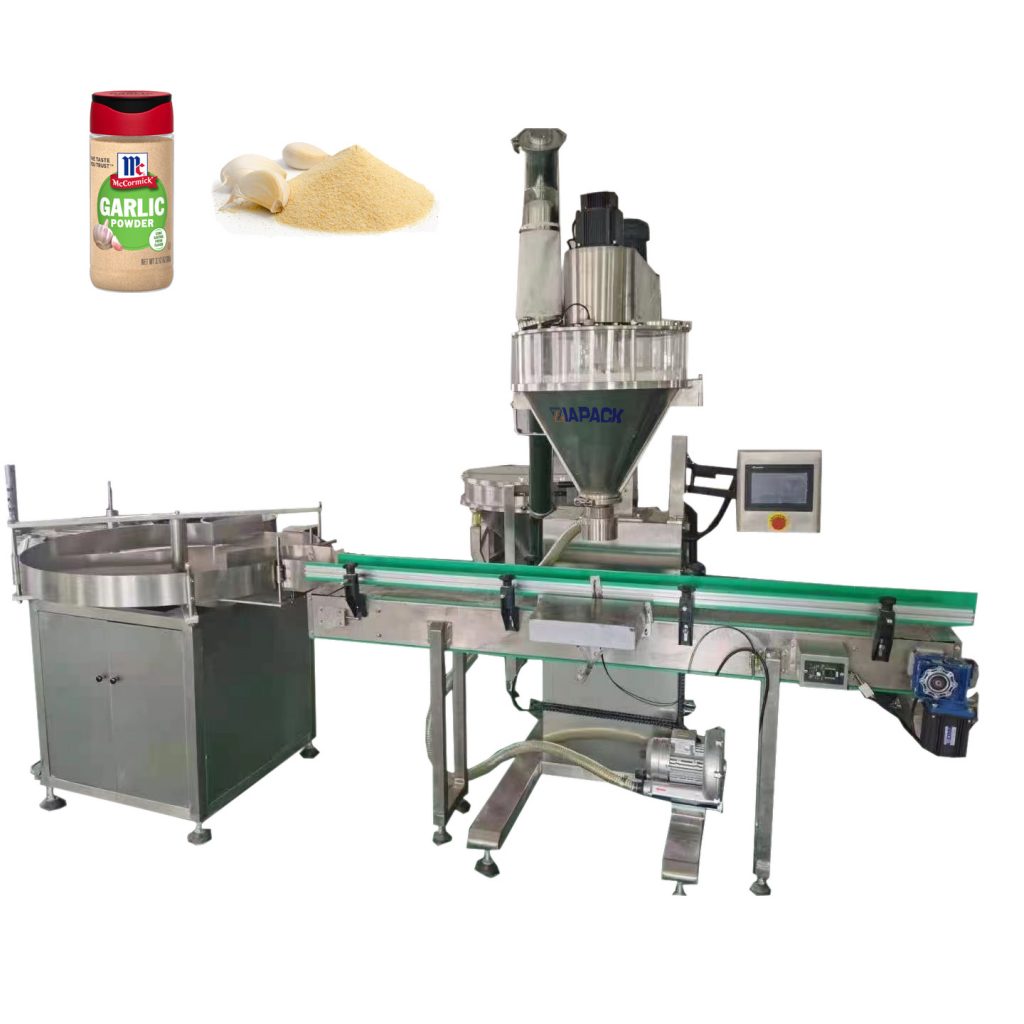

ZLA-25L Semi-automatic Auger filling machine
Descriptive abstract
This type can do dosing and filling work. Due to the special professional design, so it is suitable to the fluidic or low-fluidity materials, like coffee powder, wheat flour, condiment, solid drink, veterinary drugs, dextrose, pharmaceuticals, powder additive, talcum powder, agriculture pesticide, dyestuff, and so on.
Hovedtrekkene
Stainless steel structure；Quick disconnecting or split hopper could be washed easily without tools.
Servo motor drive screw.
PLC & touch screen make it be easy of operation.
Vekt tilbakemelding og proporsjon spore bli kvitt mangelen på variabel pakket vekt for ulike forhold av forskjellig materiale.
Save the parameter of different filling weight for different materials. To save 10 sets at most
Replacing the auger parts, it is suitable for material from super thin powder to granule.
Main Technical Data
| Hopper | Quick disconnecting hopper 25L |
| Pakkevekt | 10 - 1000g |
| Pakkens nøyaktighet | ≤ 100g,≤±2%; 100 – 500g, ≤±1%; ≥500g,≤±0.5% |
| Fyllhastighet | 5 – 20 times per min |
| Strømforsyning | 3P AC208-415V 50/60Hz |
| Total kraft | 2.25Kw |
| Total Weight | 350kg |
| Overall Dimensions | 1205×1010×2174mm |
