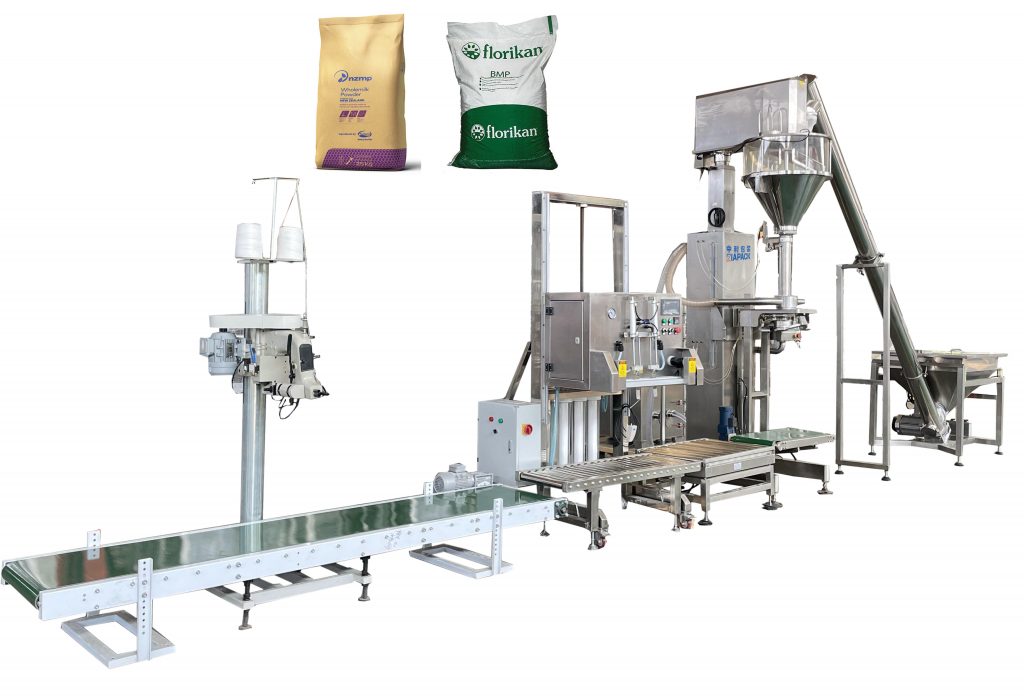

Automatic 25kg powder material weighing filling bagging machine

ZL100L Model Auger filling machine with online weigher

Denne modellen er hovedsakelig designet for det fine pulveret som lett kan sprute støv og høy nøyaktighet pakking krav. Basert på tilbakemeldingsskiltet gitt av vektsensoren nedenfor, utfører denne maskinen måling, tofylling (rask fylling og nøyaktig fylling), og opp-ned arbeid etc. Den er spesielt egnet for fylling av tilsetningsstoffer, karbonpulver, tørt pulver av brannslukningsapparat. , og annet fint pulver som trenger høy pakkingsnøyaktighet.

Hovedtrekkene

1, Pneumatic bag clamper and platform equip with load cell to handle two speeds filling as per preset weight. Featured with high speed and accuracy weighing system to guarantee the high packaging accuracy.

2, Servo motor control up-down work driving with tray together, the up-down rate can be set randomly, no dust spouts out when filling.

3, With servo motor and servo drive controlled auger, perform stably, and with high accuracy.

4, PLC control, touch screen display, easy to operate.

5, Made of stainless steel, combined hopper or split hopper, easily to be cleaned.

6, With hand wheel to adjust the height , easy to fill many kinds of weight.

7, With fixed screw installation, the material quality won’t be effected.

Arbeidsprosess:

put bag/can(container) on the machine → container raise → fast filling，container declines → weight reaches the pre-setting number → slow filling  → weight reaches the target weight → take the container away manually

Note:

1, the pneumatic bag-clamp equipment and can-hold set is optional ,they are suitable for can or bag filling separately.

2,Two filling modes can be inter-changeable,fill by volume or fill by weight.Fill by volume featured with high speed but low accuracy.Fill by weight featured with high accuracy but low speed.

Main Technical Data
