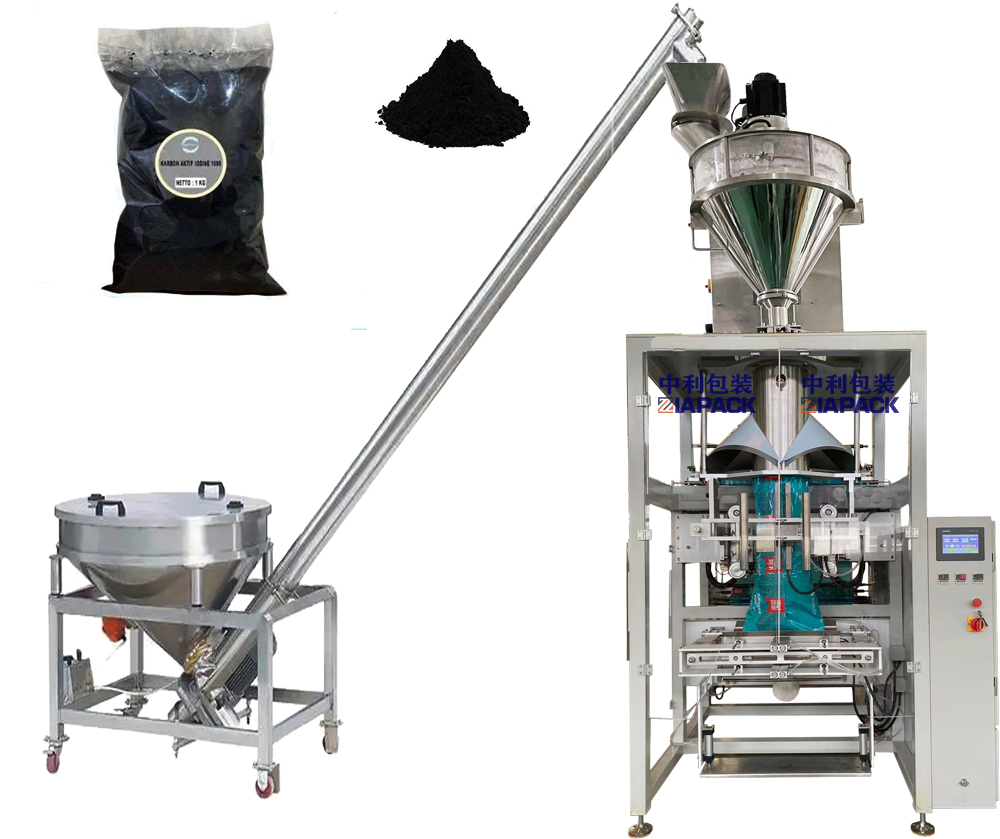

Automatic carbon powder bag forming filling sealing packaging machine
This unit machine is special design for packaging activated carbon powder .The whole machine can automatic forming filling and sealing the bag .With auger filling head for measuring the powder and dischare into bucket with loadcell .So accuracy is higher .The whole machine control by PLC and operate on colorful display .
Tekniske parametere:
Weighing Range: 5-10kgs
Packaging Speed:2-8bags/min
Bag size: (200-520)*(150-520)mm(L*W)
Film roller width :1200mm
air requirement: 0.6Mpa 0.65m³/min
outer diameter: 400mm
inner diameter: 75mm
inner weight:980kg
Features :
Film transport system and horizontal Jaw motion both drive by Panasonic
Safe quick change of tube and collar for different size bag
Optoelektronikk oppdage filmposisjon på krage for å korrigere filmutflukt
Electrical photo sensor inducting color code to control bag length
Unik Pneumatisk Film-Reel låsing struktur for å unngå film tegning avbøyning
Uavhengig temperaturjustering.
Date coding by ribbon
Forskjellige typer oppvarmbare laminatfilmer, nemlig PE / BOPP, CPP / BOPP, CPP / PET, PE / NYLON, aluminiumsfoliebasert, kan kjøre på maskinen.
Material contact part made by SUS304(Can made by 316)
