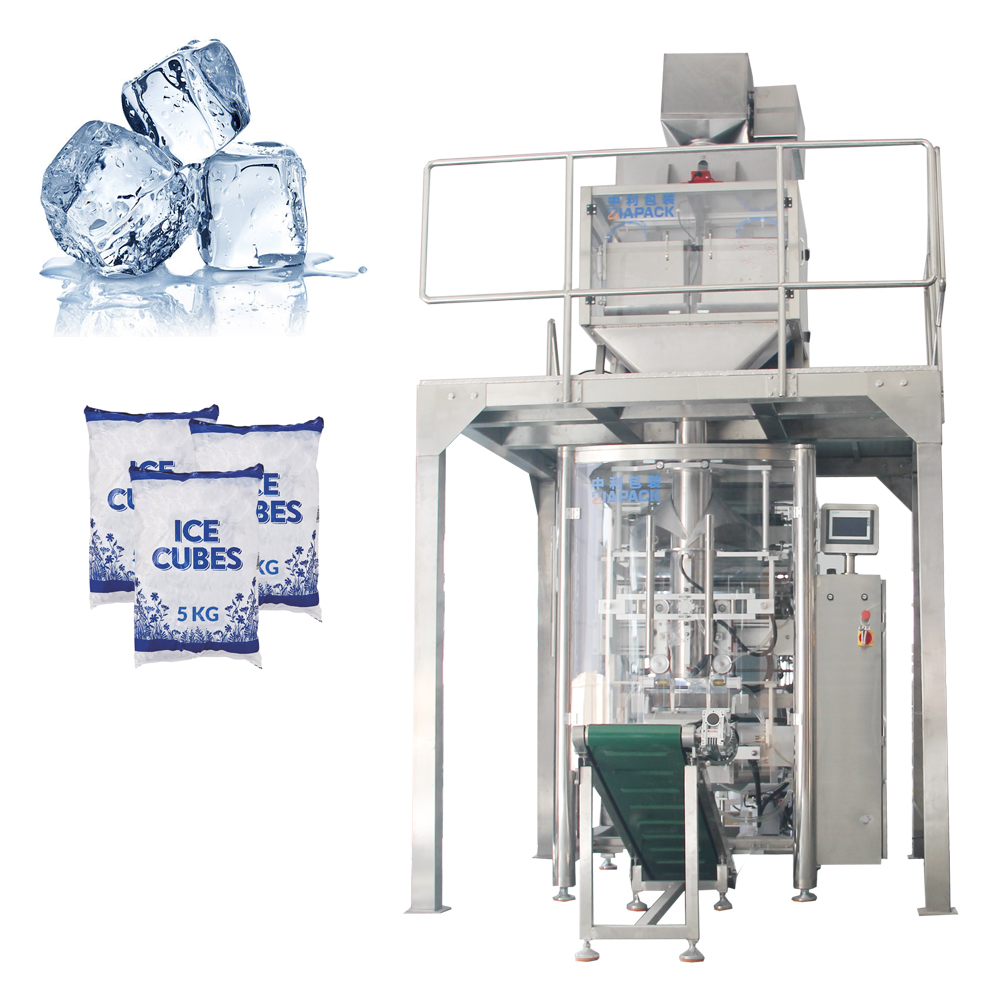

Automatic bag forming filling sealing packaging machine unit for 5-8kg ice cube Introduction :
This unit machine is special design for packaging ice cube and ice tube in to soft plastic bag .With function of ice cube feeding ,weighing ,filling ,Automatic bag forming sealing and full bag output .The main machine has function of bag counting and date coding .
Machine details :

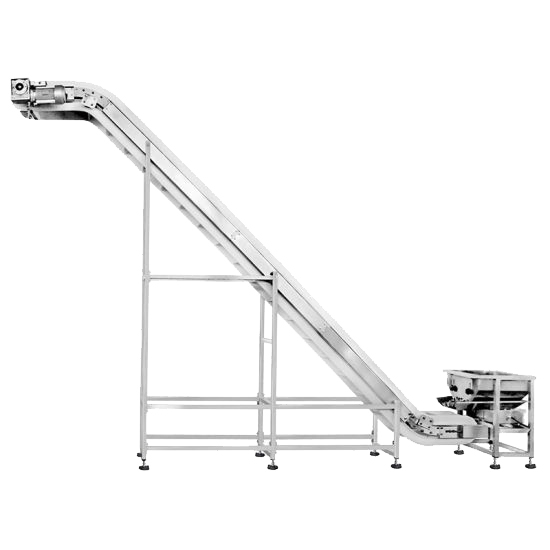

1,ZT2 Incline feeding conveyor
This machine is special design for frozen food or ice cube conveying and feeding .The machine frame is made by SUS304 and ABS food grade plastic chain plate .With Plexi glass cover for prevent the dust .
Height :2.5-4meter
Belt :Plastic chain plate(Food grade )
Frame: SUS304
Motor :1.5kw

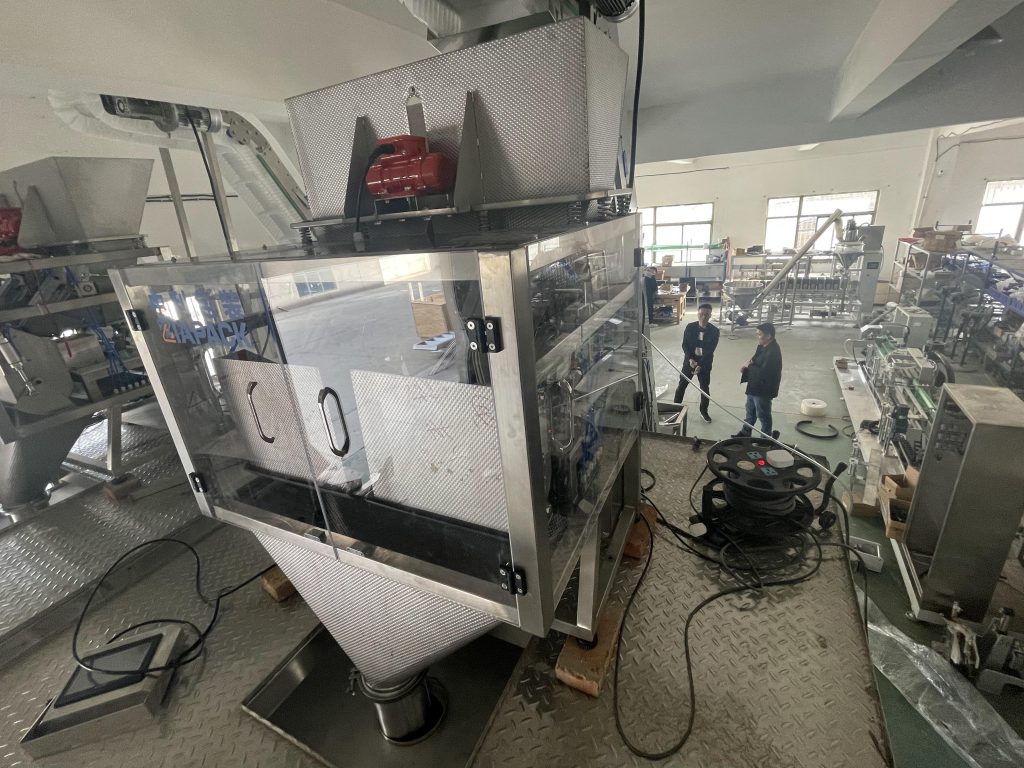

2,ZLC2000 Linear type double bucket weighing machine
applikasjoner
Widely use for weighing Granules like Coffee beans, Rice, Sesame Seeds, Small Granules etc. Dry & Processed Foods: Snack foods, Biscuits & Bakery, pasta, Grated Cheese, ice cube ,frozen food Nuts, Dried fruits, Pet Food.and so on
Egenskaper
Vedta høy presisjon digital lastcelle
Farge berøringsskjerm med flerspråklig kontrollpanel
Sanitæranlegg med 304 # S / S konstruksjon
De kontaktede produktene kan enkelt monteres uten verktøy
Bland bland forskjellige produkter som veier ved en utslipp
Programmet kan fritt justeres i henhold til produksjonsbetingelsen
Tekniske parametere:
Measurement range:5-8kg
Measurement speed: 10-20times / min
Measurement accuracy: ± .05-1‰
Strøm: 220V 50HZ 0,5KW
Arbeidstrykk: 0,5 ~ 0,8 MPa
Mål: 760X860X3144
Weighing bucket volume: 4.5L
