Introduksjon:

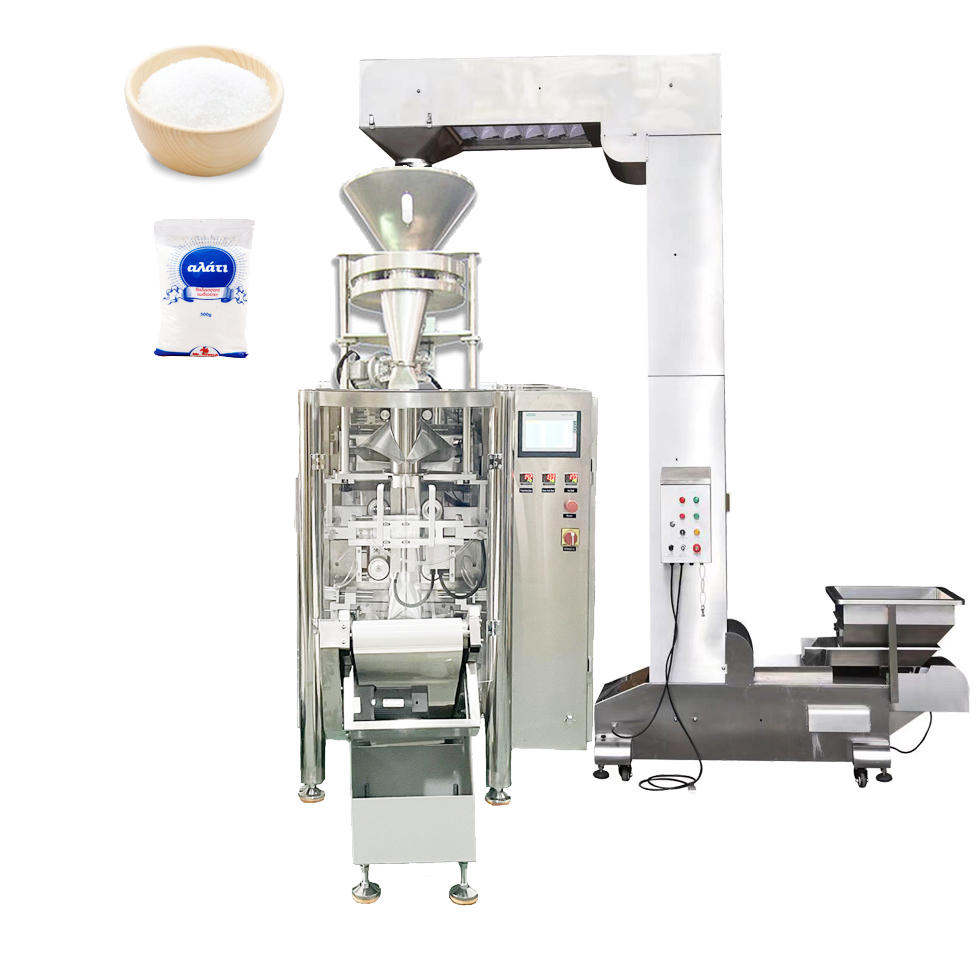

This machine unit is including one set ZL520 vertical bag forming filling sealing machine and one set LB1000 Volumetric cups measuring machine .The whole machine unit can reach automatic bag making ,Product weighing ,product filling sealing and date coding .Widely use for packing slat ,rice ,bean and other granular product .
1,ZL520 Vertical bag forming filling sealing packaging machine
The whole machine made by Stainless Steel 304, Material contact part made by SUS316 .This machine equipped with bag-making, cutting, code printing , etc. OMRON PLC and Touch Screen，Panasonic servo motor, Japanese Photo Sensor , SMC electromagnetic valve .
Tekniske parametere:
Weighing Range: 500-2000g(Adjusting the volumetric cups )
Packaging Speed:25 -45bags/min
Bag size: (100-380)*(80-260)mm(L*W)
Trykkluftbehov: 0,6Mpa 0,65m³/min
Spolens ytre diameter: 400 mm
Kjerne indre diameter: 75mm
Maskinvekt: 800 kg
Strømkilde: 5,5kW 380V±10% 50Hz
Working station :
Working process:
