Introduksjon:
This machine unit are special design for packing small sauce product like ketch up , chili sauce ,Fish meal and so on .The machine can automatic make the bag ,weighing the product ,filling product in to bag and then output the conveyor .The whole machine are control by PLC and can operate on Touch screen .Easy for adjusting and maintain .

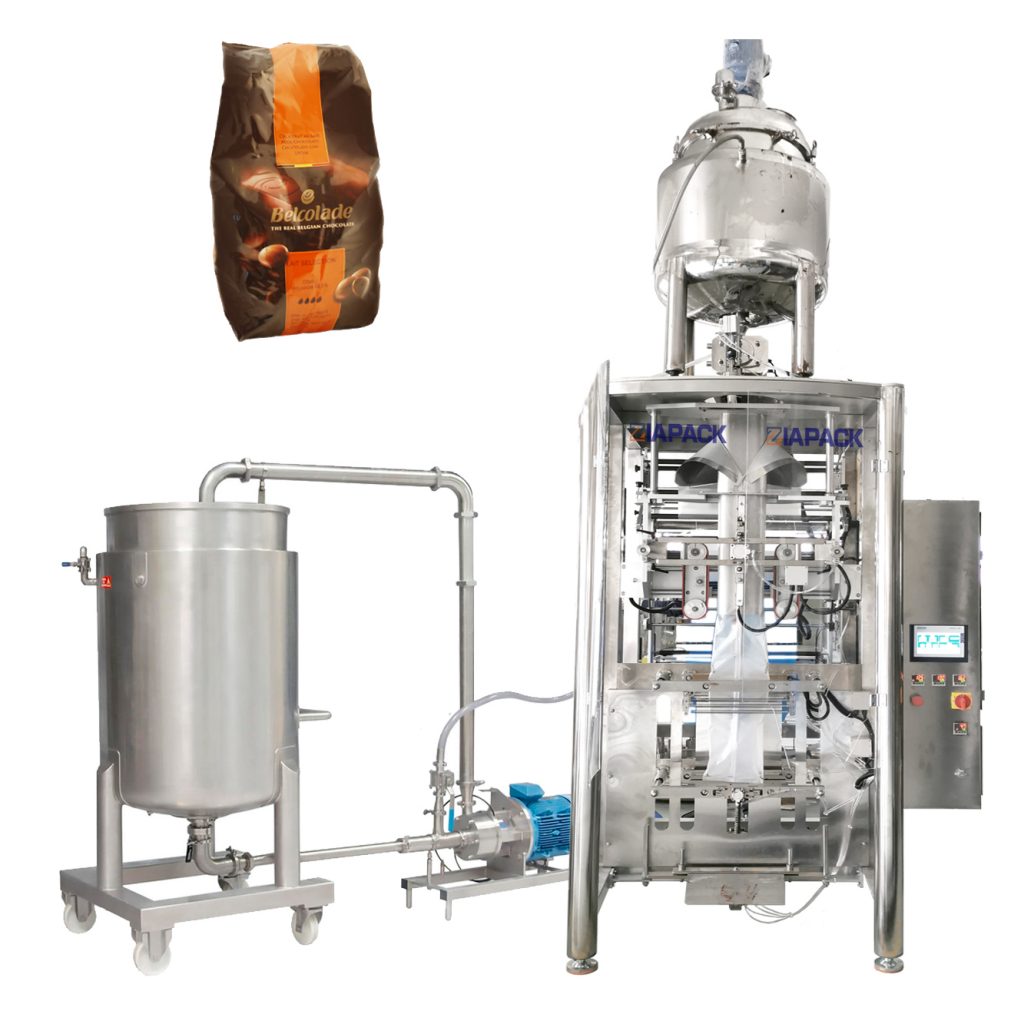

| ZL900 vertical bag forming filling packaging machine |
| Machine fully controlled by Siemens PLC & Touch-Screen |
| Minute capacity can automatic display on Touch screen |
| Film transport system and horizontal Jaw motion both drive by Panasonic |
| Safe quick change of tube and collar for different size bag |
| Optoelektronikk oppdage filmposisjon på krage for å korrigere filmutflukt |
| Electrical photo sensor inducting color code to control bag length |
| Unik Pneumatisk Film-Reel låsing struktur for å unngå film tegning avbøyning |
| Uavhengig temperaturjustering. |
| Date coding by ribbon |
| Forskjellige typer oppvarmbare laminatfilmer, nemlig PE / BOPP, CPP / BOPP, CPP / PET, PE / NYLON, aluminiumsfoliebasert, kan kjøre på maskinen. |
| Material contact part made by SUS304(Can made by 316) |
Technical parameter for whole line :
| Posetype | Putetaske |
| Maks kapasitet | up to 20kilograms |
| Minimumskapasitet | 5kg |
| Hastighet | 3-5ag/min depend on the product |
| Vektnøyaktighet | ±0.5-1% dependent on products characteristics |
| Veske lengde | 400 to 700mm |
| Veske bredde | 200-430mm |
| Reel Film Width | ≤900mm |
| Filmtykkelse | (80-150mic.) |
| Reel Outer Dia. | 600mm |
| Reel Inner Dia. | 75mm |
| Spenning | AC380V/50-60Hz, 3phase |
| Komprimert luftbehov | 0.8 MPa0.36 M3min |
| Total powder Consummation | 15kw |
Bag forming process:
