ZL9000 Automatic bag forming filling sealing packaging machine for 1-5kg ice cube
1 Introduction:
This machine unit is special design for packaging ice cube ice tube and ice grain .This machine is full automatic weighing bag making forming and packaging sealing .The whole machine unit are steady and easy for operation . unmanned operation and health .We had offer this machine unit for many client from local and over sea market

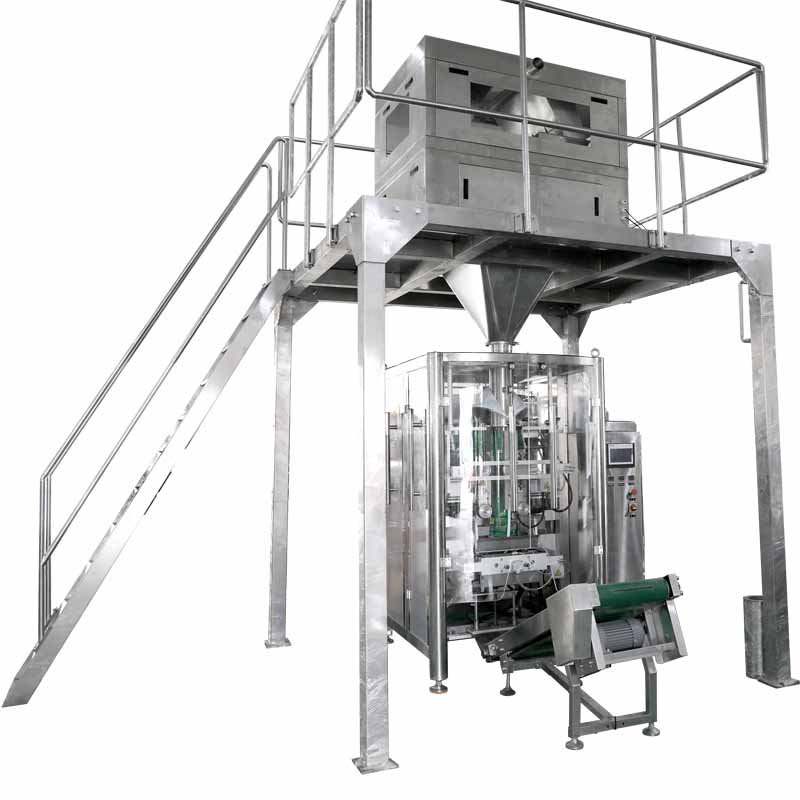

2 Machine photo :
3 Details for the machine :

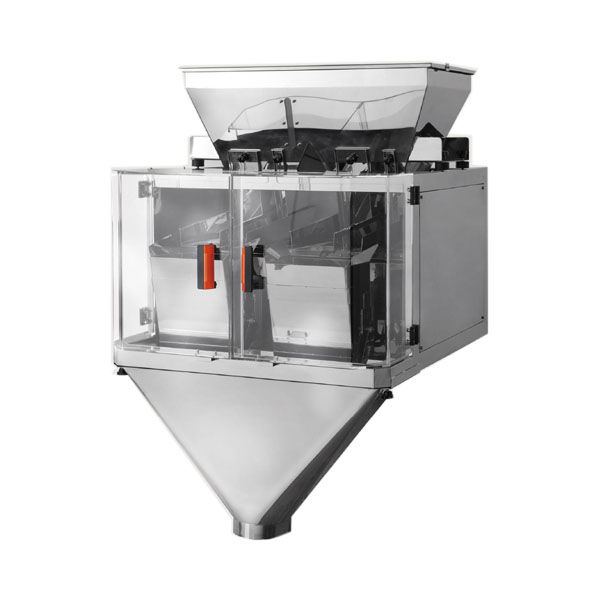

1, CJS2000-F flour heads linear weighing machine: All parts contact with material is made of stain less steel, other parts are made of carbon steel. Max weighing capacity of single bucket is 5kg.
| Maks kapasitet | up to 5 kilograms |
| PS:each hopper max can weight 5 kg. Two weighting hopper work together can weight 10kg each time . | |
| Minimumskapasitet | depend on product characteristics but nominally 1KG |
| Hastighet | 10 bag/min for 5kg ice cube |
| Vektnøyaktighet | ±0.2% dependent on products characteristics |
| Spenning | 220V/50Hz, 1ph or Per customer specification |
| Makt | 0.8KW |
2, ZL9000 auto forming filling packaging machine
This machine equips with bag-making, cutting, code printing, etc. to make pillow bag . OMRON PLC and Touch Screen，Panasonic servo motor, Japanese Photo Sensor, Korean Air valve, etc . Stainless Steel for body. Servo driving for the film pulling .
PS: It can second time film pulling function and do Max bag length is 920MM.
Konfigurasjonsliste
| Punkt | Brand name | Punkt | Brand name |
| Material for machine | SUS304 | Drive motor | Schneider |
| Fill pulling servo motor | Schneider | Reducer | Wuhan planets |
| Date coding system | Tianyi HP | Color code photoelectric | SUNX101 |
| Touch-skjerm | Omron | Cylinder stator | AirTAC |
| Proximity switch | Beifuning | PLC | Omron |
| Temperature controller | Omron | ||

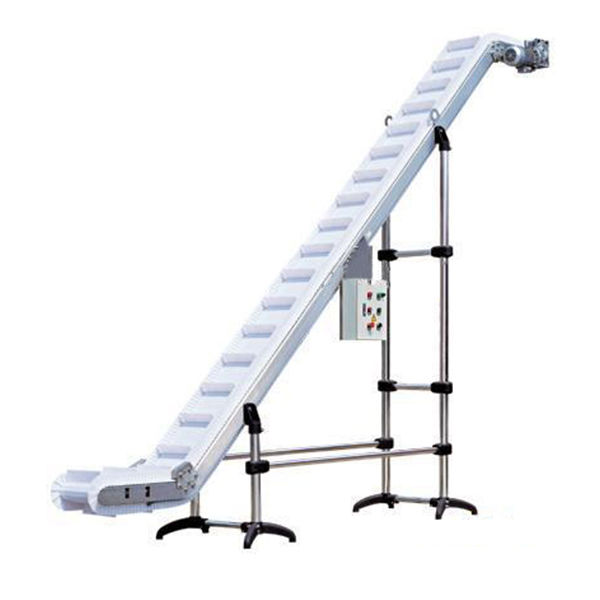

3, Steep angled conveyor :The body is made of 304 S.Steel and the bucket is food stage plastic. The height of this elevator will be suitable for the packaging machine.With automatic control system for products feeding.
Steep angled conveyor Production take-off conveyor belt
4, Production take-off conveyor belt one set.. Made by Stainless Steel. 1.95m for the length.
5,Carbon Steel Supporting flat form one set.
4.Technical information:
- Bag size:(150mm-850mm)*(100mm-430mm)(L*W);（the bag length can do second time pulling , that mean the max bag length is 920mm）
- Weighing range: 2-10kg
- Film width:580-1100.mm
- packaging speed:6-12 bags/min(according the packaging weight and the bag size );
- Accuracy:0.2% (according the packaging weight and the bag size )
