Semi-automai 50 kg risposemaskin

Introduksjon :

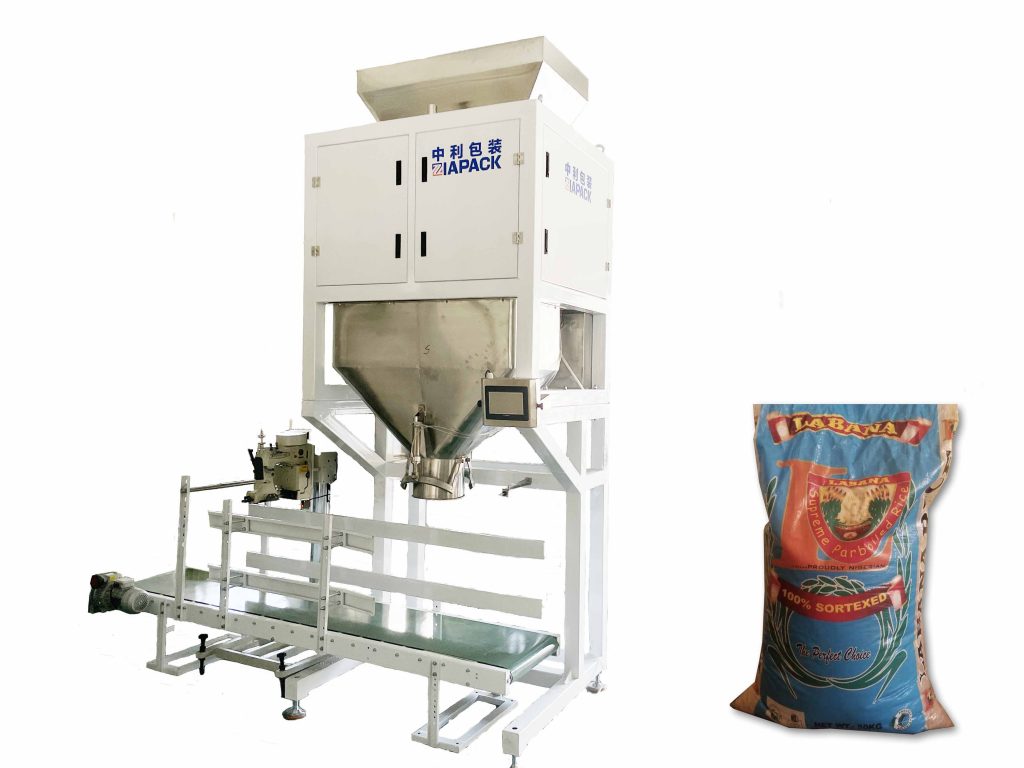

This machine unit including one set double buckets weighing machine for measuring 30-50kg .One set 3meter output conveyor ,one set PE bag heating sealing machine and one set jute bag stitching machine .The whole machine can automatic finish product weighing ,product filling ,automatic bag stitching and heat sealing .Just need manual feeding the bag .

Maskinfunksjon:

1,Convenient to be operate.easy to be installed

2,Adopt independent two-group measurement control system, fast packaging speed;

3,The metering control system adopts 3 high-precision pressure sensors, a high conversion rate display controller and a specially designed three-stage feeding mechanism, combined with scientific control algorithms, with high metering accuracy and good stability;

4,The operation is simple, the operator only needs to cover the bag and touch the bag clamping switch, and the actions such as feeding, filling and unloading are all automatically completed by the quantitative scale;

5,Equipped with a manual control switch, which can manually control the feeding and discharging mechanism, which is convenient for cleaning agglomerated and blocked materials

6,Adapted software automatic error correction ,out of tolerance alarm and fault self-diagnosis function

7,Automatic counting the number and quantity of package .

8,Widely range of fix weight and high precision and can matching with conveyor sewing machine

Teknisk parameter
