Details:

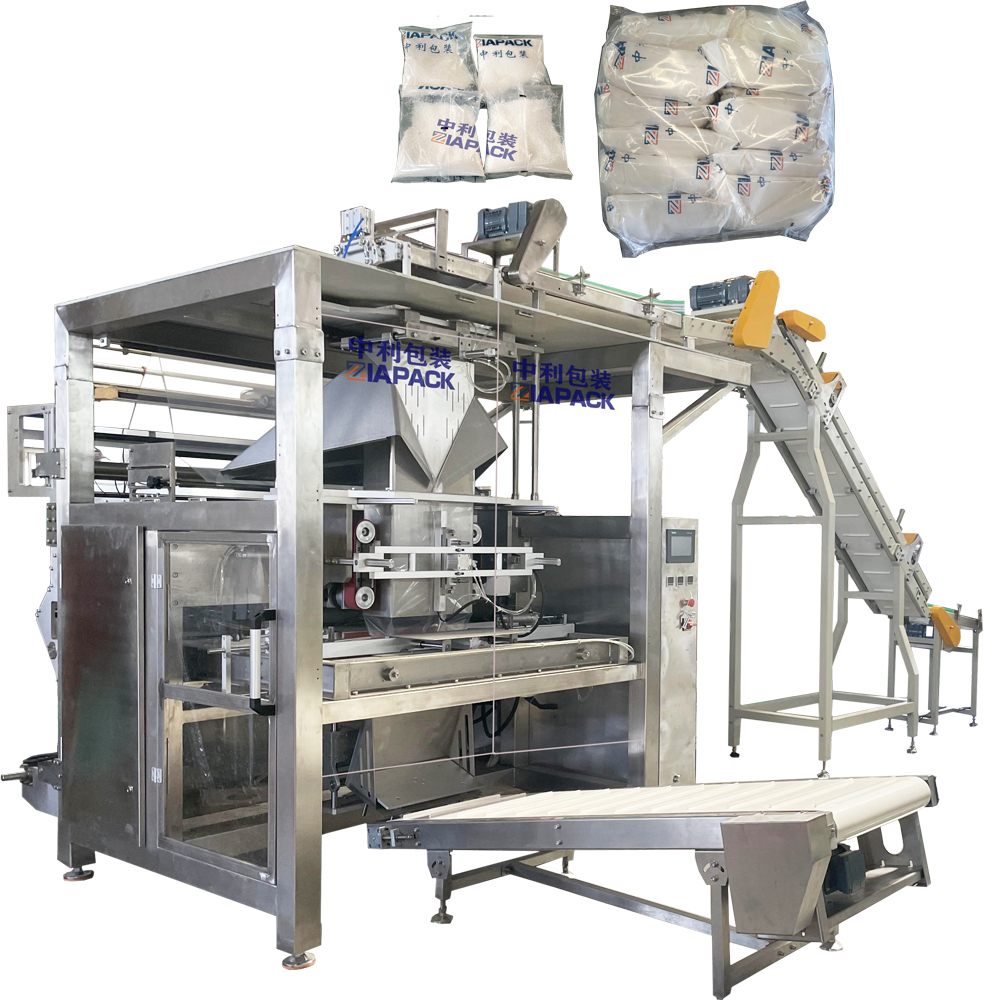

This machine is suitable packing small bag in to big bag .The machine can automatic made the bag and fill in small bag and then sealing the big bag . This machine including the bellowing units:
- Horisontal båndtransportør for primærpakkemaskin.
- Slope arrangement belte transportbånd;
- Akselerasjon belte transportbånd;
- Telle og ordne maskin.
- ZL1200 bag making and packing machine;
- Ta av transportbåndet
Produksjonsprosess:

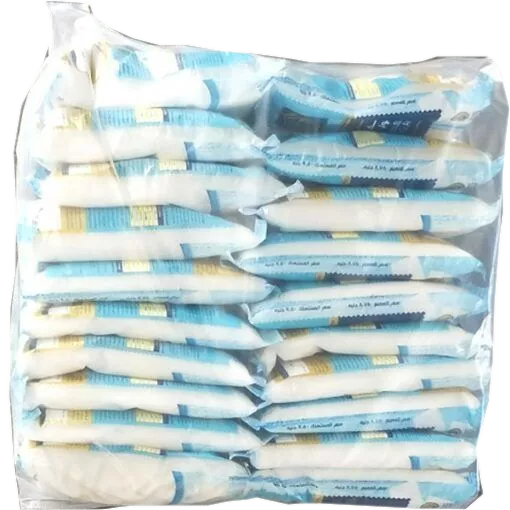

- For secondary packaging (auto packing the small sachets into big plastic bag):
Horizontal conveyor belt for collecting the finished sachets → slope arrangement conveyor will make the sachets flat before counting → Acceleration belt conveyor will make the adjacent sachets leaving enough distance for counting → counting and arranging machine will arrange the small sachets as requirement → the small sachets will load into the ZL1200 bagging machine → ZL1200 bagging machine seal and cut the big bag → belt conveyor will take the big bag under the ZL1200 machine.
Fordeler:
- Bag automatisk pakkemaskin kan automatisk trekke filmen, posefremstilling, telling, fylling, flytte ut, Pakkeprosessen for å oppnå ubemannet.
- Berøringsskjermkontrollen, drift, spesifikasjoner endres, vedlikehold er veldig praktisk, trygt og pålitelig.
- Kan ordnes for å oppnå en rekke former for å møte kundenes behov.
Suit product :
Small sugar bag (1-5kg )

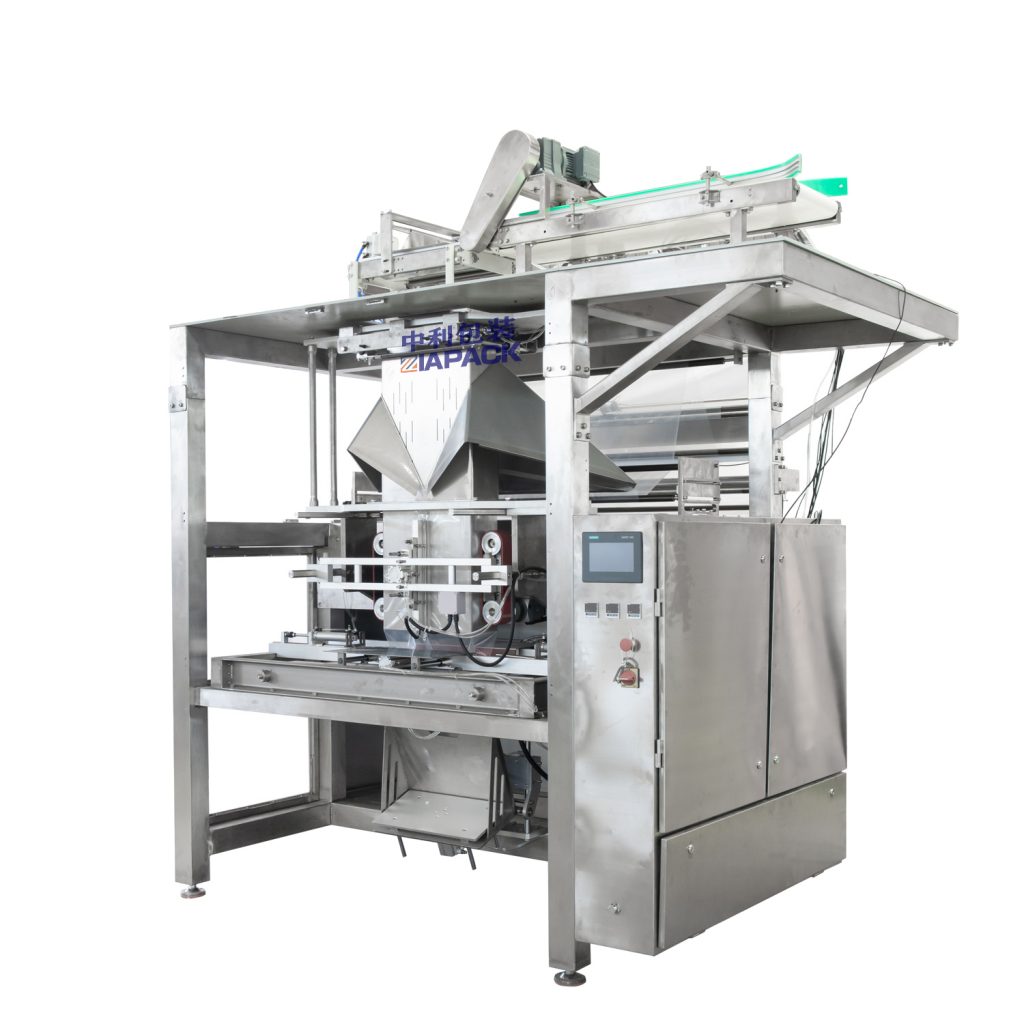

Bagging machine
This machine equips with bag-making, cutting, code, printing ,etc.to make pillow bag(or you can change it to gusset bag) .siemens PLC, siemens Touch Screen，FUji servo motor, Japanese Photo Sensor, Korean Air valve, etc. Stainless Steel for body.
Technical information:
Posestørrelse:(300mm-650mm)*(300mm-535mm)(L*B);
Packing speed :3-4 big bags per min
