Introduksjon:
This machine including one set vacuum elevator , one set ZL520 vertical bag making packing and sealing machine .one set ZLC4-2000 double buckets weighing machine ,One set ZL-100V One vacuum chamber packing machine This machine are widely use for packing food pharmacy chemical and other product in powder or small granule. Like coffee powder ,yeast powder wheat flour and so on .The whole machine adopting inside pumping to vacuum product .The vacuum degree is very high and packing speed is very high can be reach 8bag/min .The finished product is very nice and have a long shelf life.
Tekniske parametere :
Model :ZL-100V(one vacuum chamber )
Packing speed 12-15 bag/min
Bag dimension :Bag from width 60-180mm
Bag side width 35-75mm
Bag height 240mm
Machine dimension:5800*2300*2200mm
Power :15kw

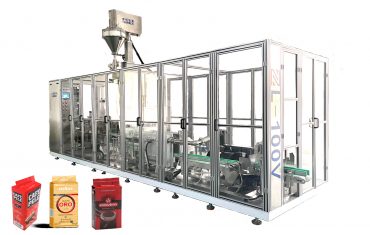

ZL-100V SINGLE VACUUM CHAMBER PAKKEMASKIN

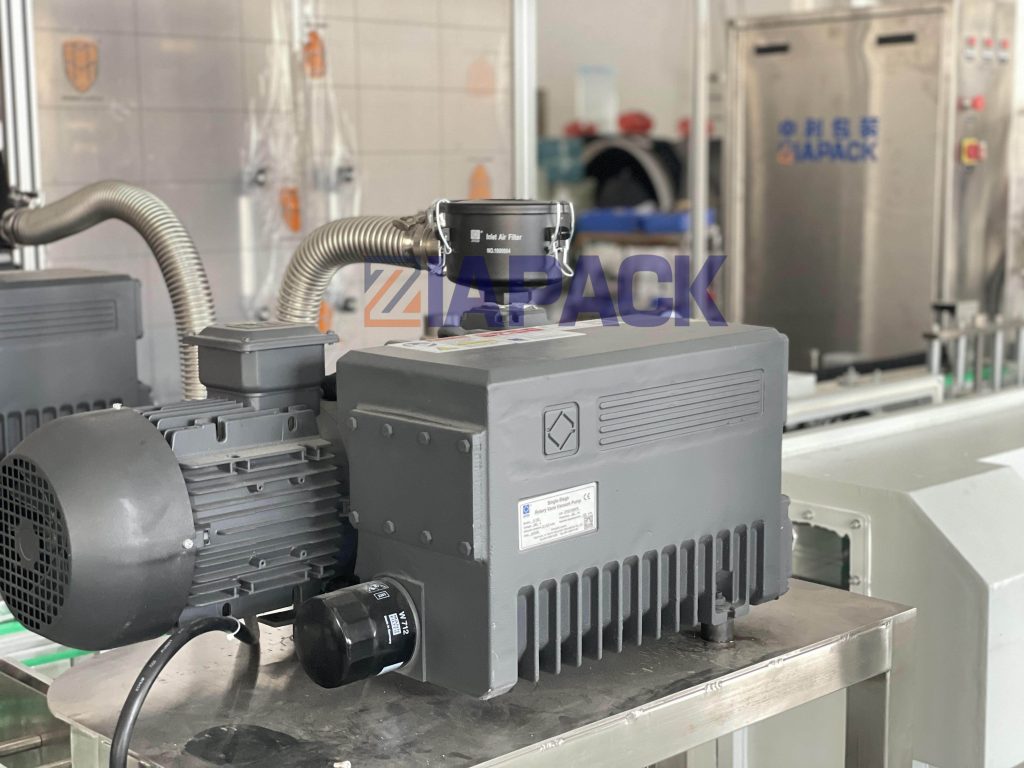

This machine is special design for vacuum packing product in high vacuum degree .The whole machine is control by Siemens PLC and touch screen .Adopt famous brand Pneumatic Components. Start the Vacuum process in vacuum chamber can reach the high vacuum degree.
Teknisk parameter:
Bag length: 100-240mm
Posebredde: 80-250 mm (sidebredde + frontbredde)
Posetype: Vakuumpose av murstein
Luftkildeforbruk: 0,6 MPa 0,45 m3/min
Power：11KW 380V±10% 50Hz
Maskinvekt: 1200 kg
